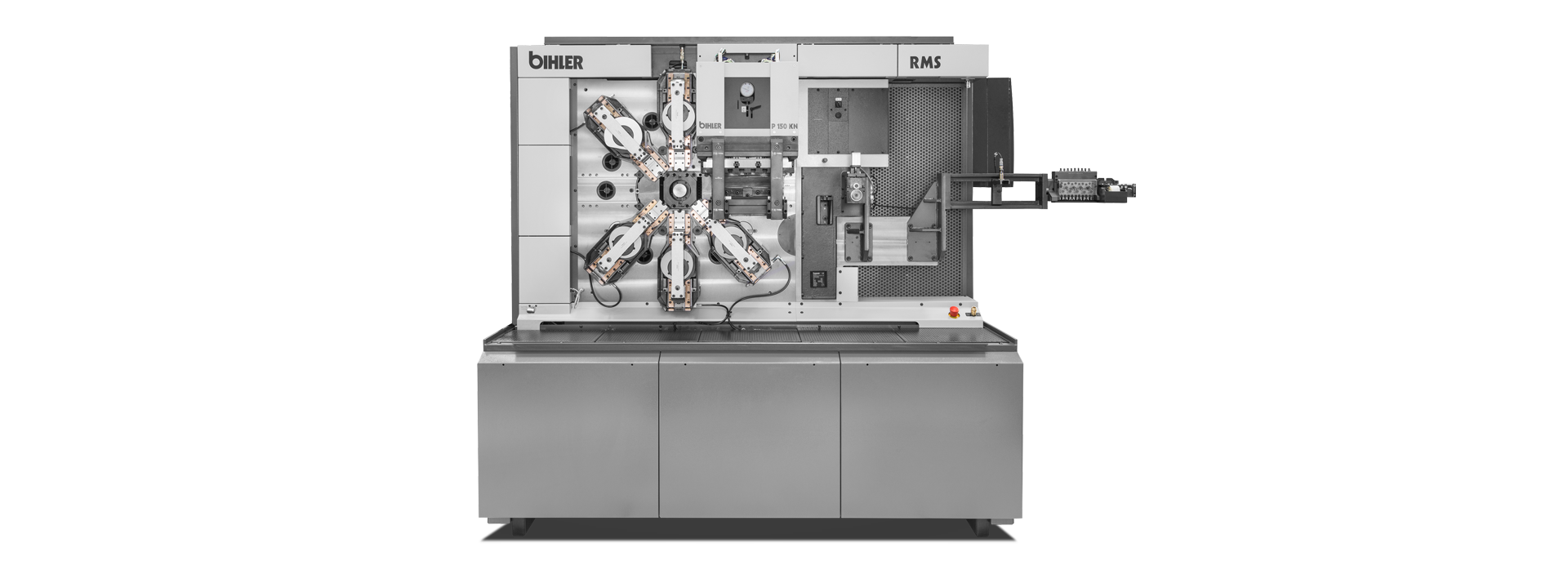

Highlights RM S
High speed machine system for enlarged parts range (stamped and formed parts made from high tensile steels)
-
High production performance up to 600 1/min
- Strong 150 kN two-point eccentric press unit with large mounting area
- High press rigidity allows the use of high performance carbide tools
- 900 mm processing length on the machine plate
- Guaranteed process reliability through press force monitoring and bearing temperature sensors
- VariControl VC 1E for easy and reliable operation
Technical data
|
Stroke rate:
|
steplessly from 5 to max. 600 1/min.
|
|
Processing length:
|
900 mm
|
| Press: |
nominal stamping force 150 kN, stroke 8 mm
|
|
Slide units:
|
nominal bending force max. 30 kN, stroke max. 25 mm
|
|
Central mandrels:
|
max. 3 central mandrels; nominal force max. 15 kN, stroke max. 45 mm; as option NC central mandrels
|
| Feed length: |
mech. feed: max. 240 mm, with feed time reduction; NC feed: any (as option)
|
| Material: |
strip thickness: max. 4 mm, strip width max. 60 mm, wire Ø: max. 4 mm
(depending on material and process) |
| Dimensions: |
width 2,590 mm x depth 2,100 mm x height 2,450 mm
|
| Weight: |
approx. 3,160 kg (without tooling)
|
