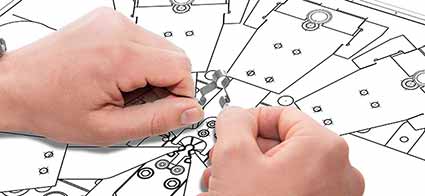

1 Planning
Simple, fast feasibility statement
- Clearly defined bending workspace
- Quick and easy planning of bending sequence
- Plausible calculation specified by tool setup (modular system)
- Free WebApp "Bihlerplanning" (www.bihlerplanning.de)
![](files/bihler/images/produkte/werkzeugloesung/leantool-konzept-radial/leantool-planung-bihler.jpg)

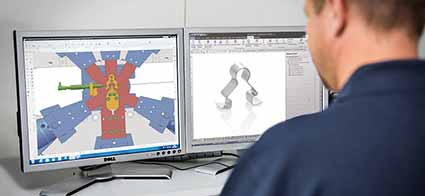

2 Design
Simple, clearly structured design
- Bihler design software bNX
- Predefined machine environment and standard parts
- All LEANTOOL standard parts in reuse library
- Simple design methodology
- Typical application examples included
![](files/bihler/images/produkte/werkzeugloesung/leantool-konzept-radial/leantool-konstruktion-bihler.jpg)

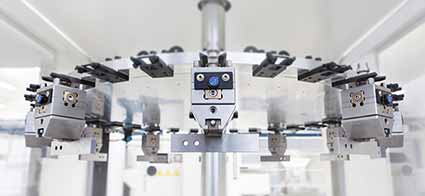

3 Manufacturing
Fast, efficient manufacturing
- Small number of tool components
- High degree of standardization (up to 70% standard parts)
- Reduces individual tool parts to a minimum
- Many standard parts available on stock
![](files/bihler/images/produkte/werkzeugloesung/leantool-konzept-radial/leantool-fertigung-bihler.jpg)

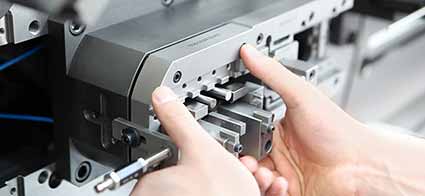

4 Assembly
Simple and quick tool installation
- Modular tool design
- Standardized tool units (pilots, punches, spring assemblies)
- Standardized, uniform quick clamping systems for tool modules
- No cam discs
![](files/bihler/images/produkte/werkzeugloesung/leantool-konzept-radial/leantool-montage-bihler.jpg)

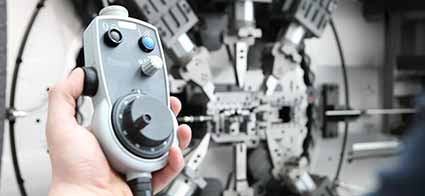

5 Setup
Simple, fast tool setup
- Standardized machine design
- Setup of servo units with VC 1
- Faster optimization of forming results with servo technology
![](files/bihler/images/produkte/werkzeugloesung/leantool-konzept-radial/leantool-einrichten-bihler.jpg)

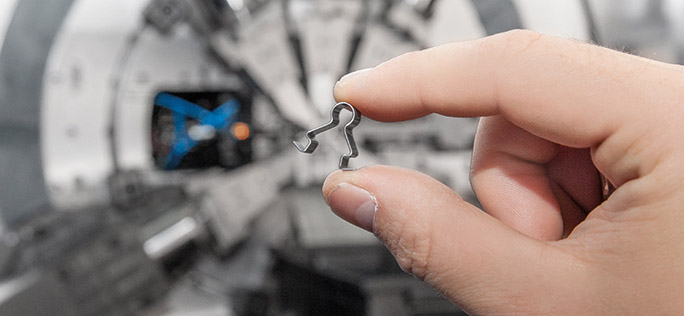

6 Production
Highly productive and accurate production
- Fast cycle speeds
- Extremely short setup times (approx. 0.5 - 1 h)
- Automatically reproducible setup
- Full tool accessibility
![Bihler LEANTOOL tool kit for standardized radial and progressive forming tools](files/bihler/images_EN/produkte/werkzeugloesung/leantool-konzept-radial/leantool-production-bihler.jpg)
